Maiden Lane Decarbonisation

Heat pump decarbonisation of a locally listed 1970s housing estate

Location: King's Cross, Camden, London

, UK

Status: Planning granted

Client: London Borough of Camden

2023-26

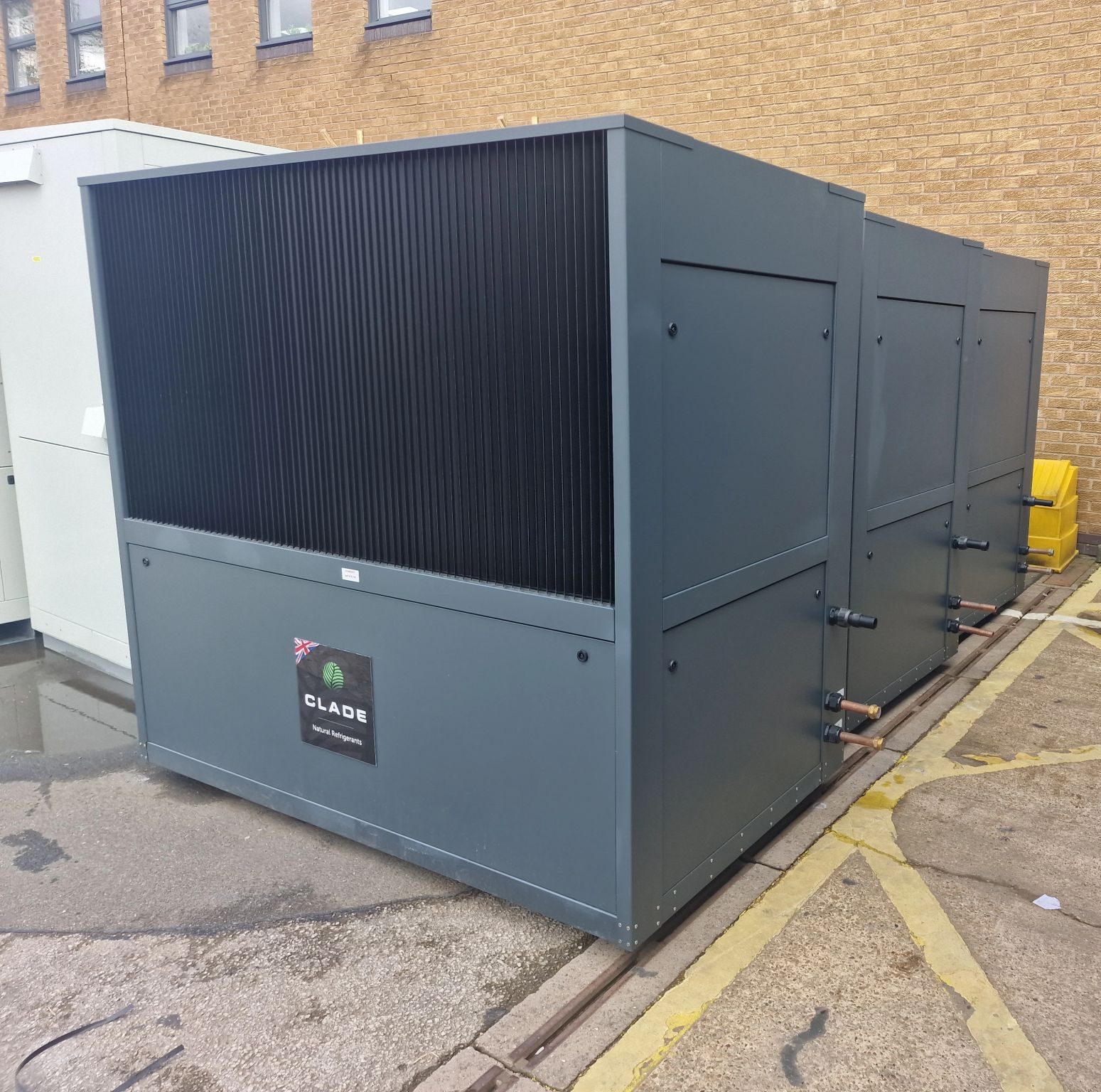

The gas district heating network on Camden’s Maiden Lane Estate has reached the end of its life, and frequent failures have left residents without reliable heat. With Max Fordham, we are designing its replacement for Camden Council: nine air source heat pumps that take space heating and hot water for all 479 homes off gas, in line with Camden’s 2030 net zero target. The estate, built by Benson & Forsyth between 1976 and 1983, is locally listed. Planning was approved in February 2026.

Read More

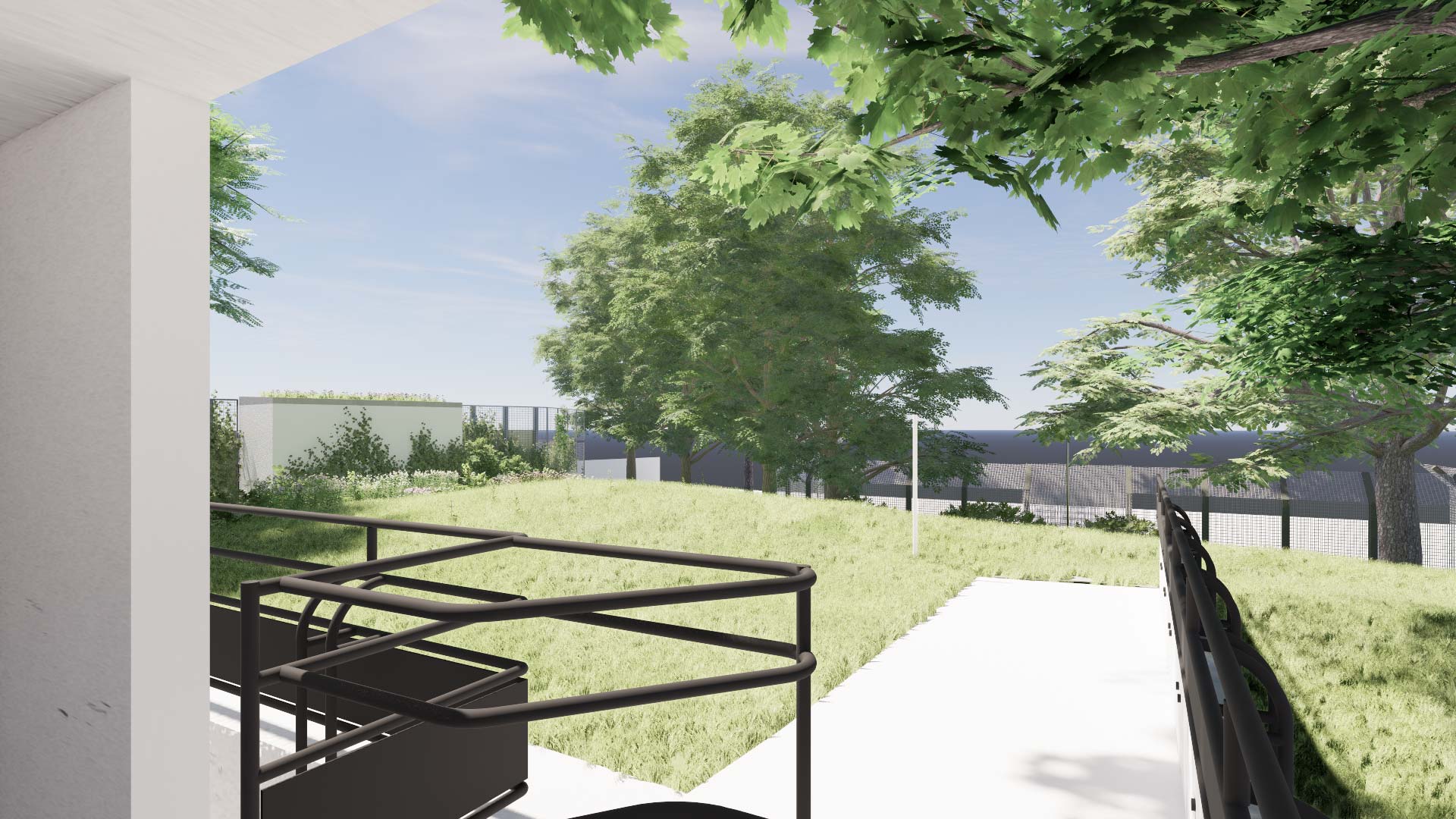

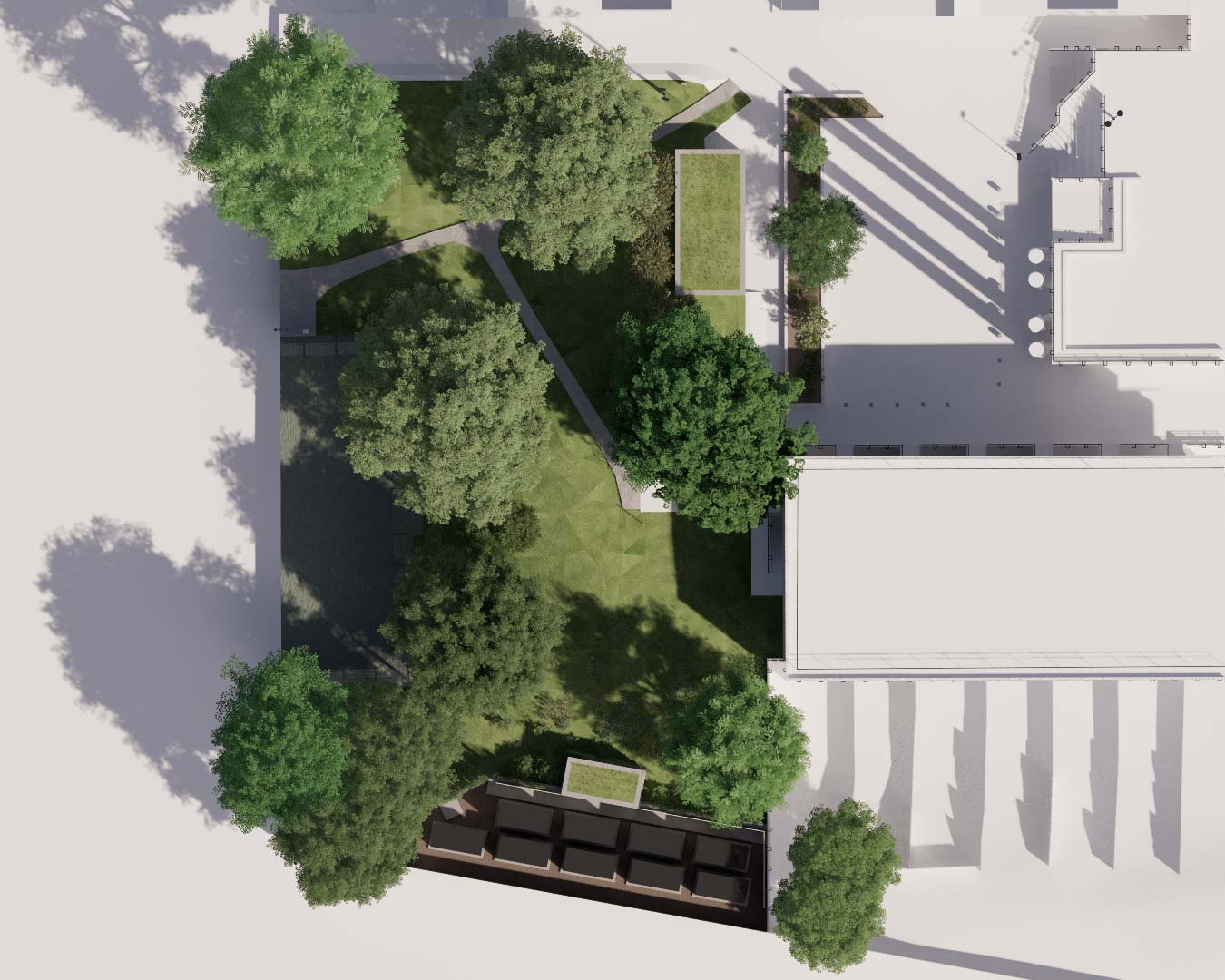

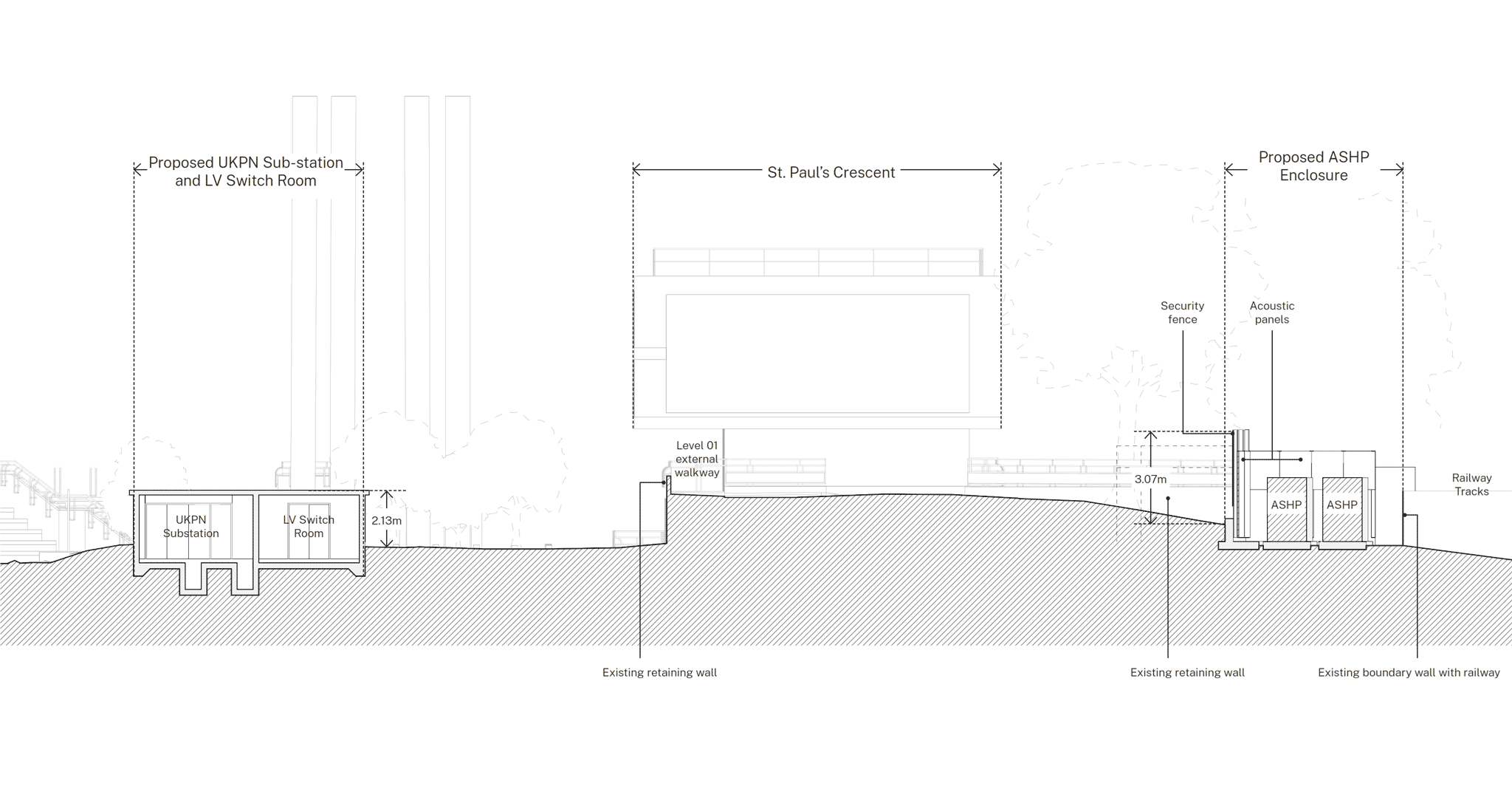

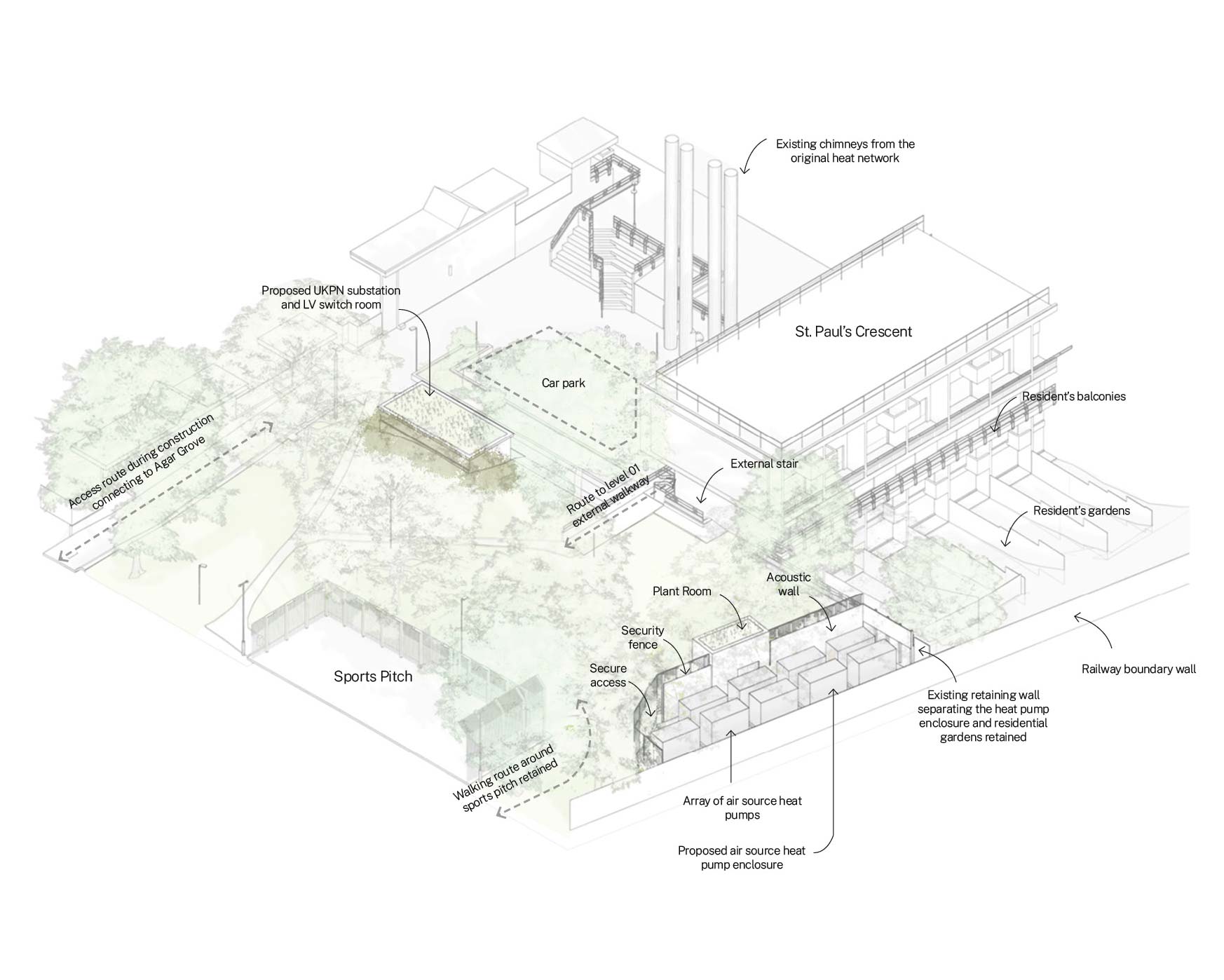

The brief, led by Max Fordham, required us to design the enclosures and ancillary structures for nine air source heat pumps, a plant room, an LV switch room and a new UKPN substation. The site sits in the southern corner of Agar Grove Open Space, against the boundary wall that separates the estate from the Mildmay overground line. Positioning here exploits the natural fall in ground level: the enclosure sits lower than the surrounding landscape, keeping its apparent height well below the existing railings when seen from residents' balconies.

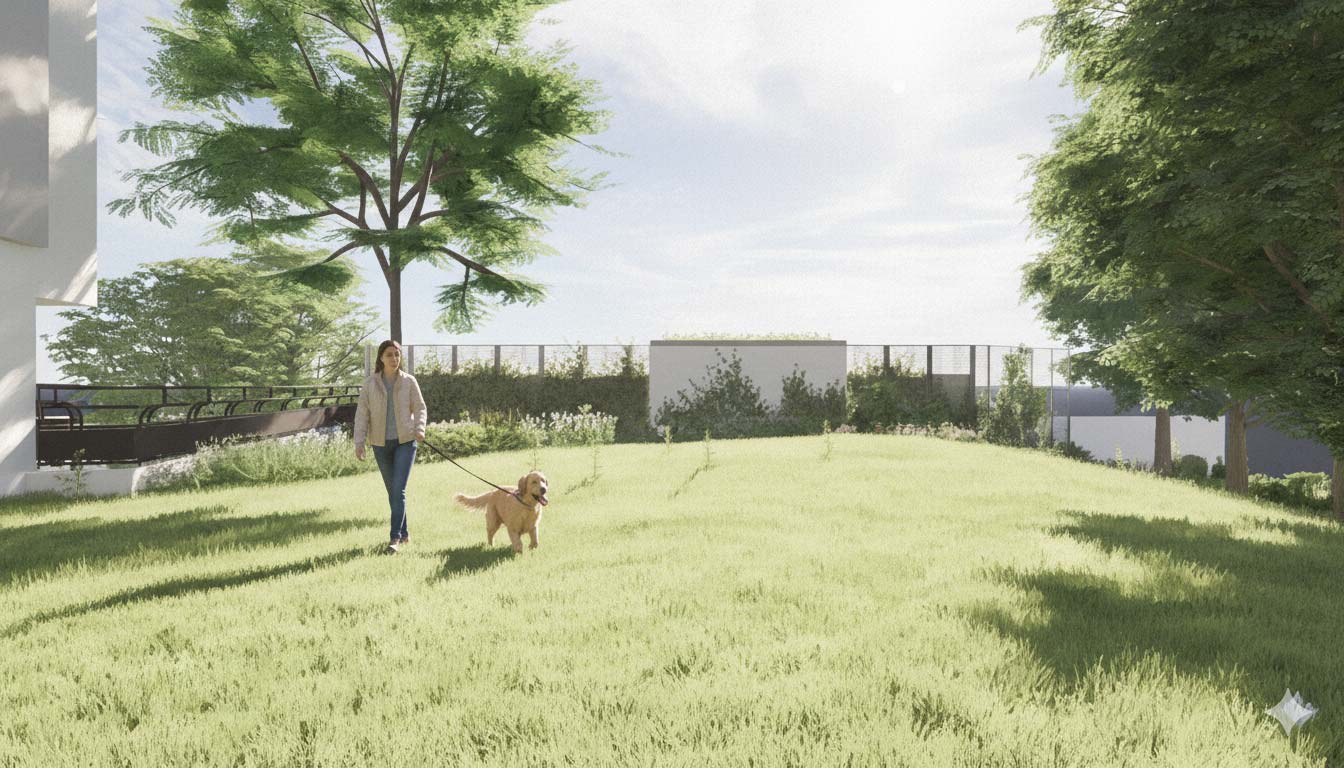

Acoustic panels on a secondary steel frame line the north and east boundaries, bringing heat pump noise within Camden's environmental health guidance. The 3-metre welded mesh security fence doubles as a trellis for climbing plants that will form a green screen over time.

The plant room and switch room are rendered white to match the estate's defining material, with species-rich green roofs delivering the required 10% biodiversity net gain. The Tenants' and Residents' Association proposed this corner of Agar Grove over the two options first tested at pre-application, and the design has been developed with residents throughout.

Process

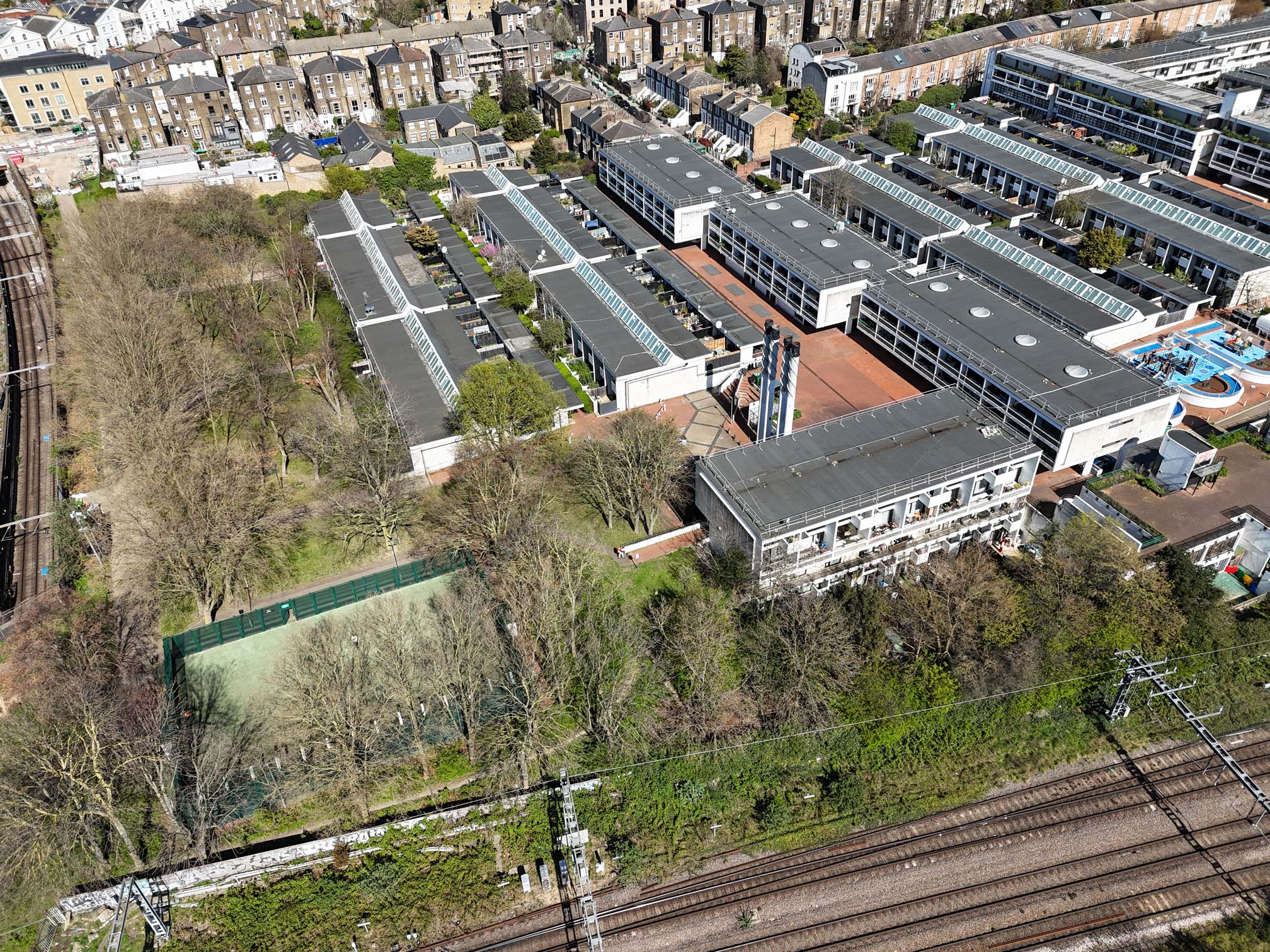

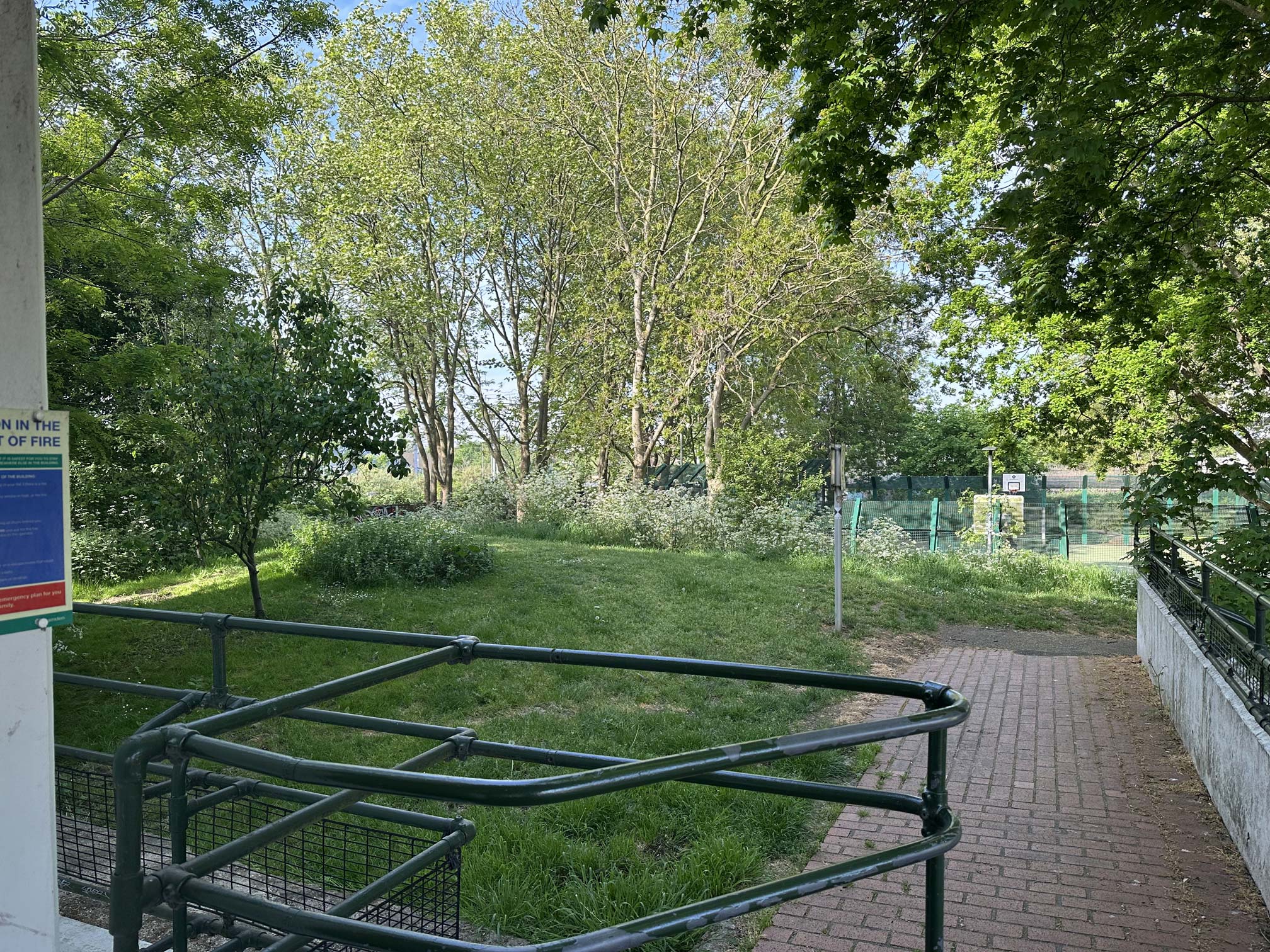

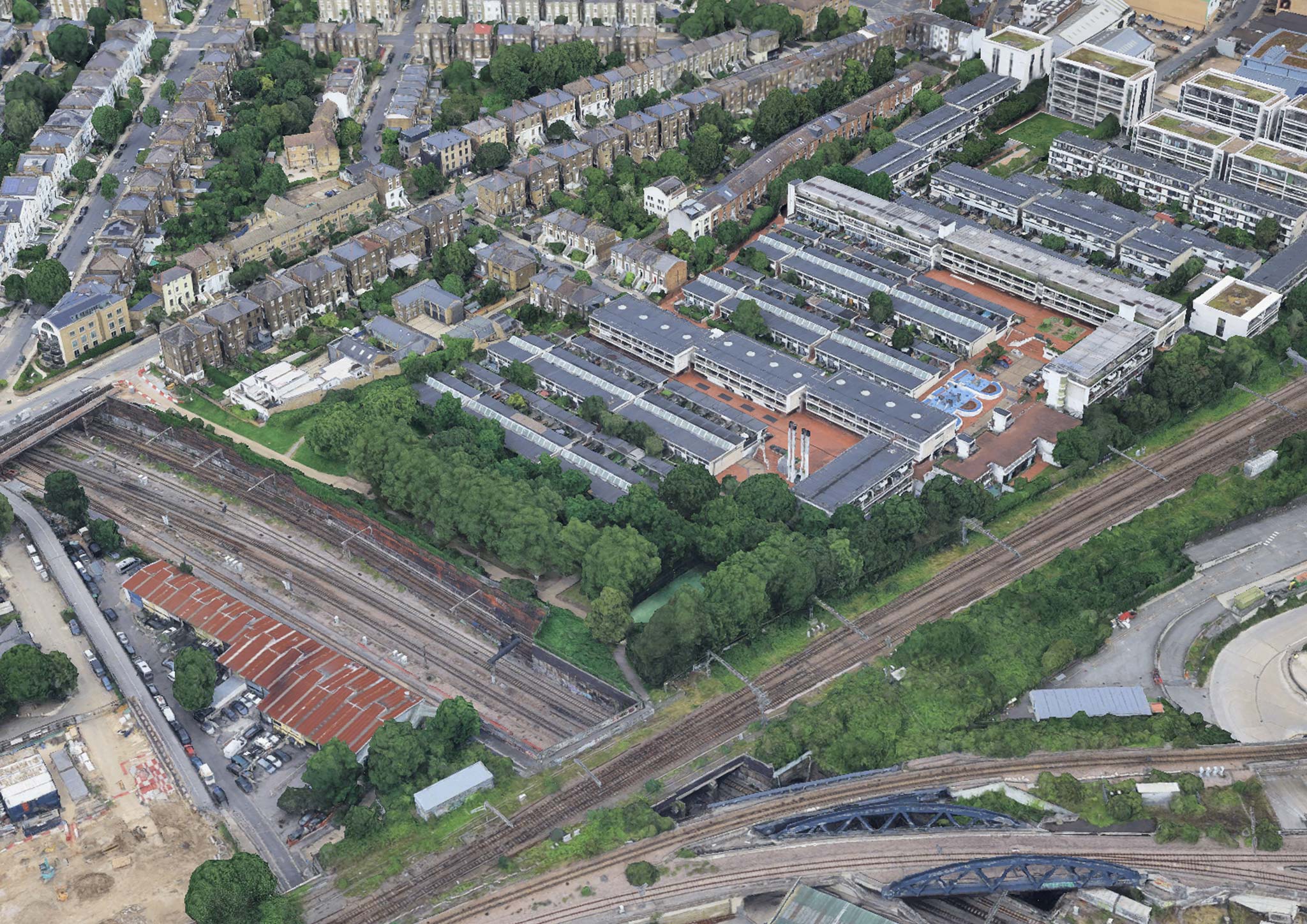

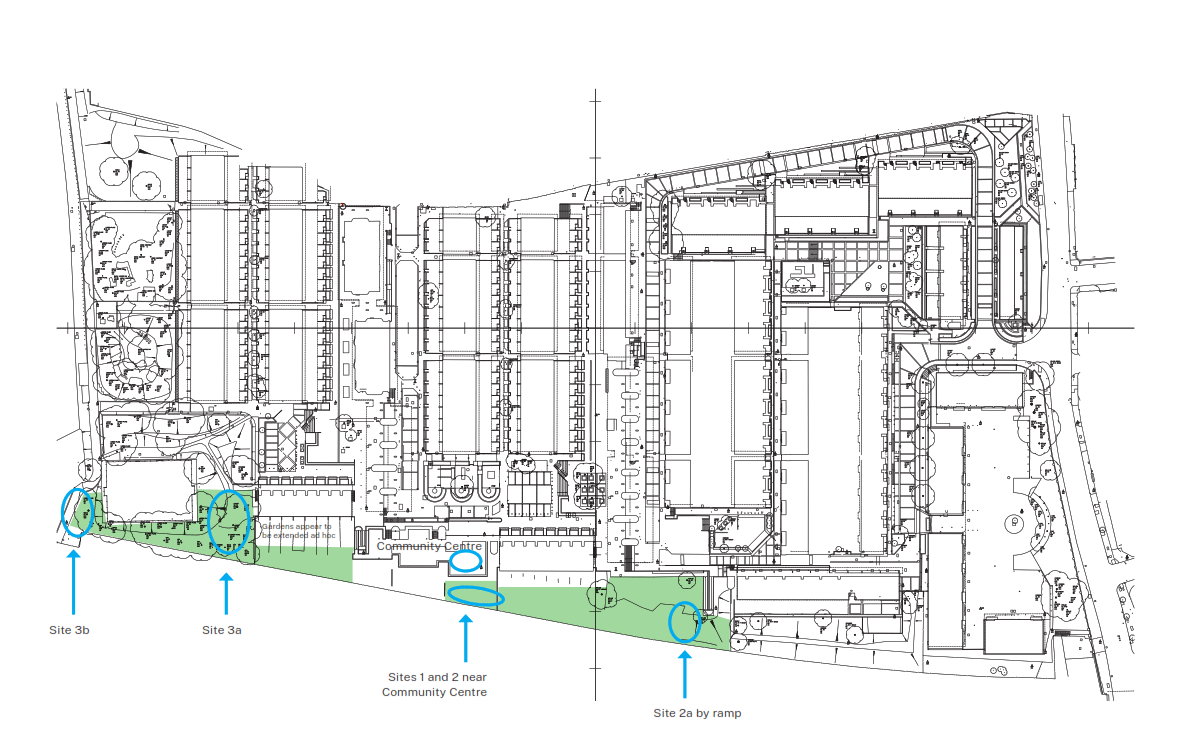

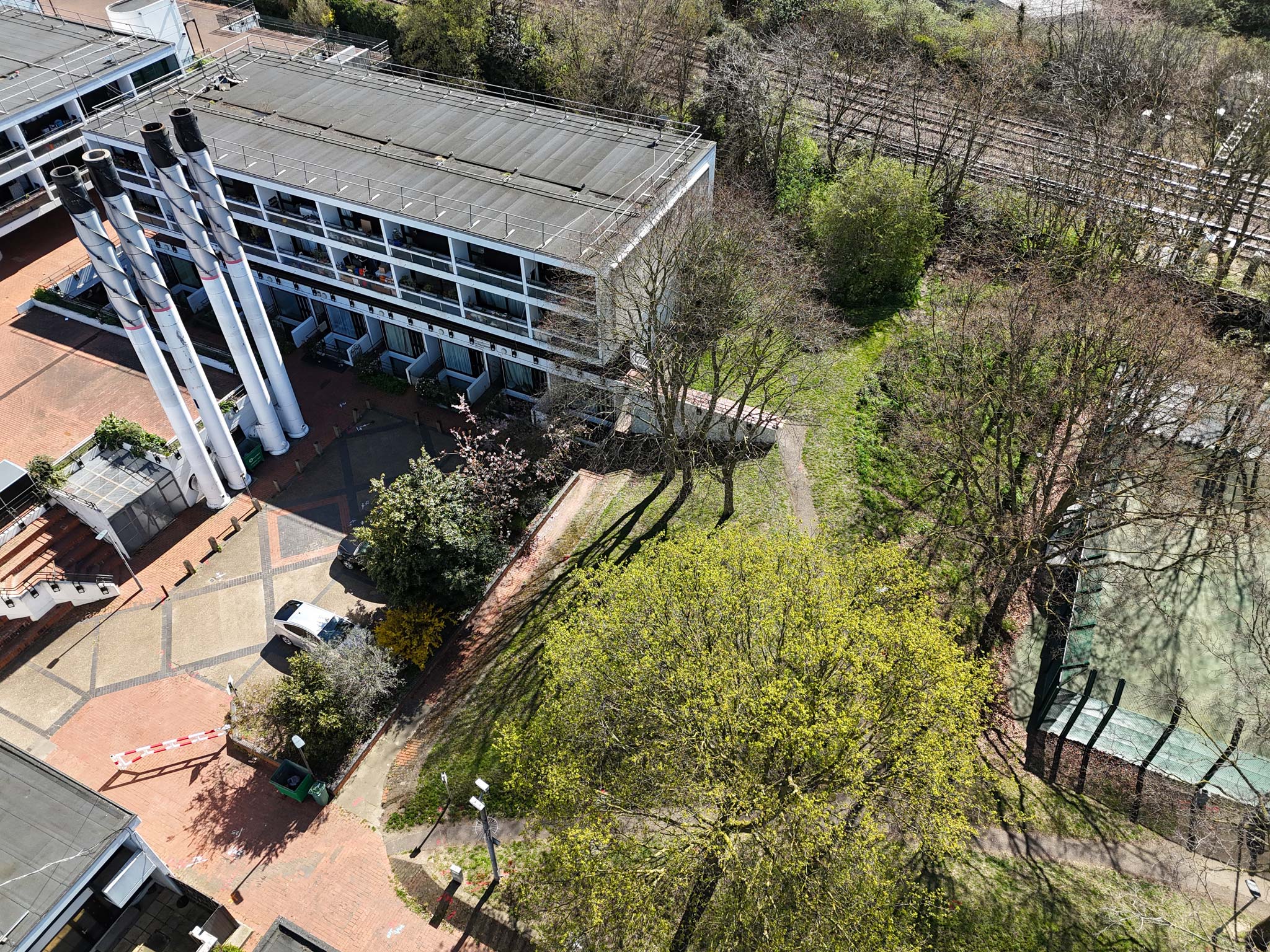

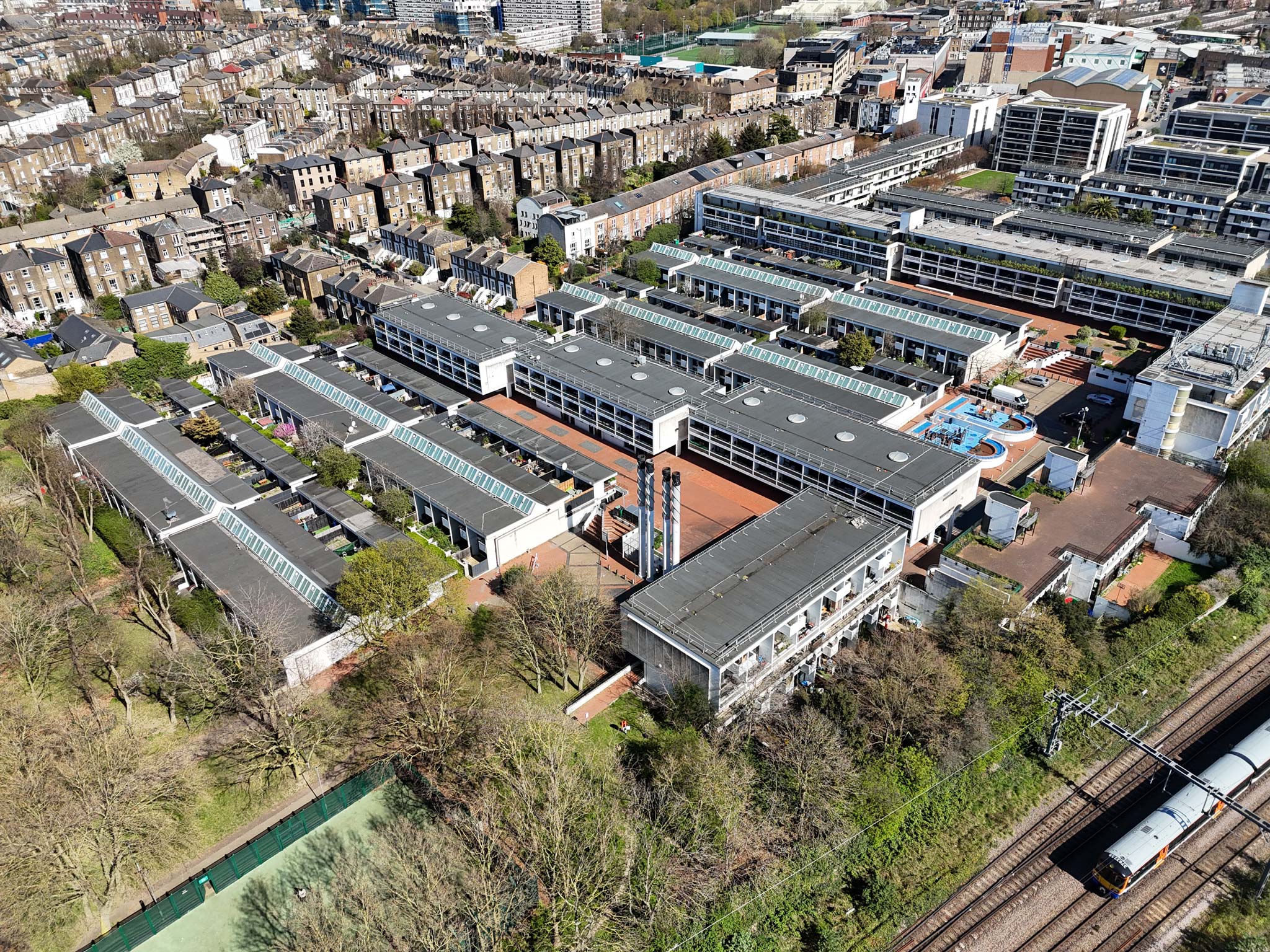

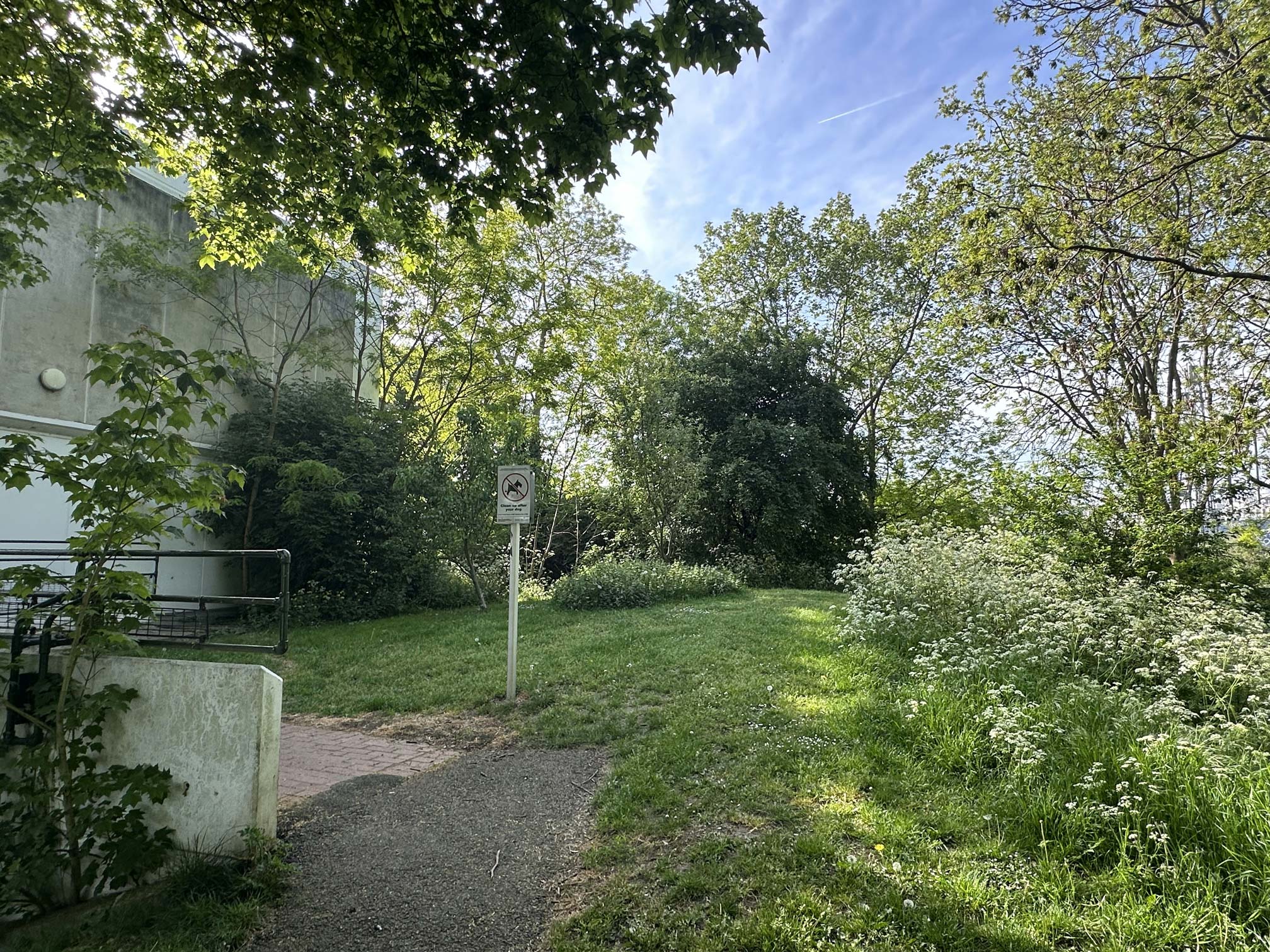

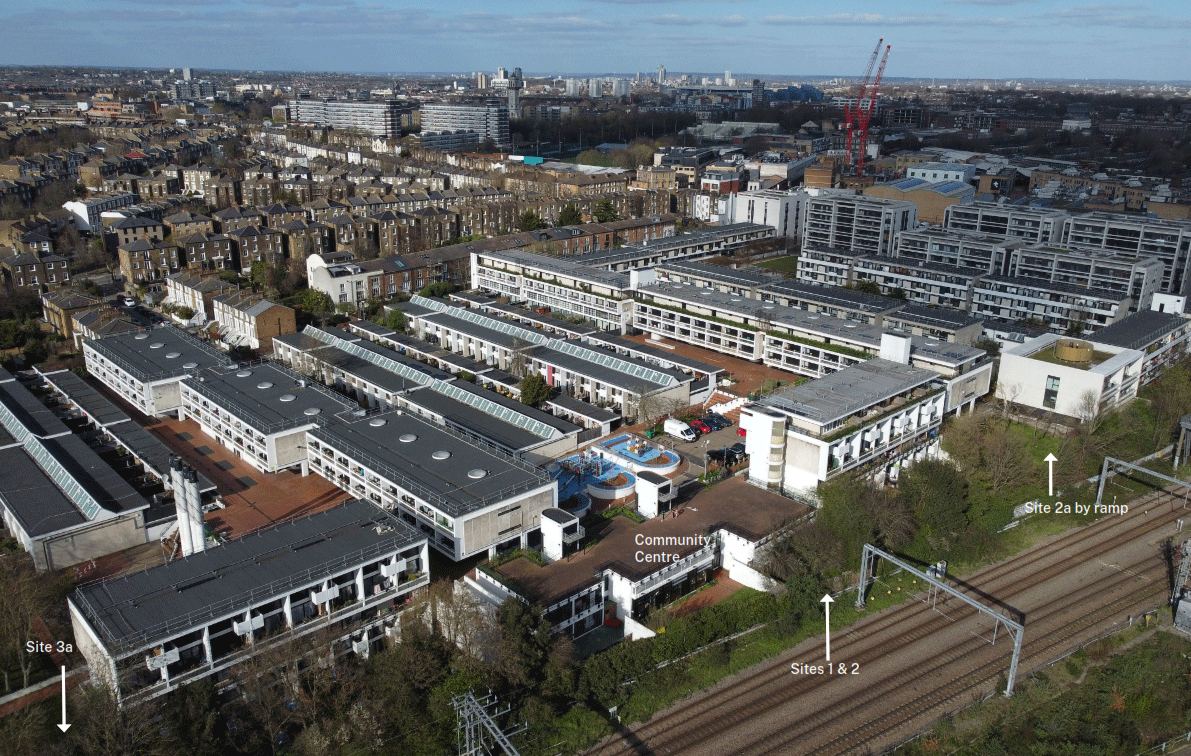

Existing site conditions and identification of suitable location

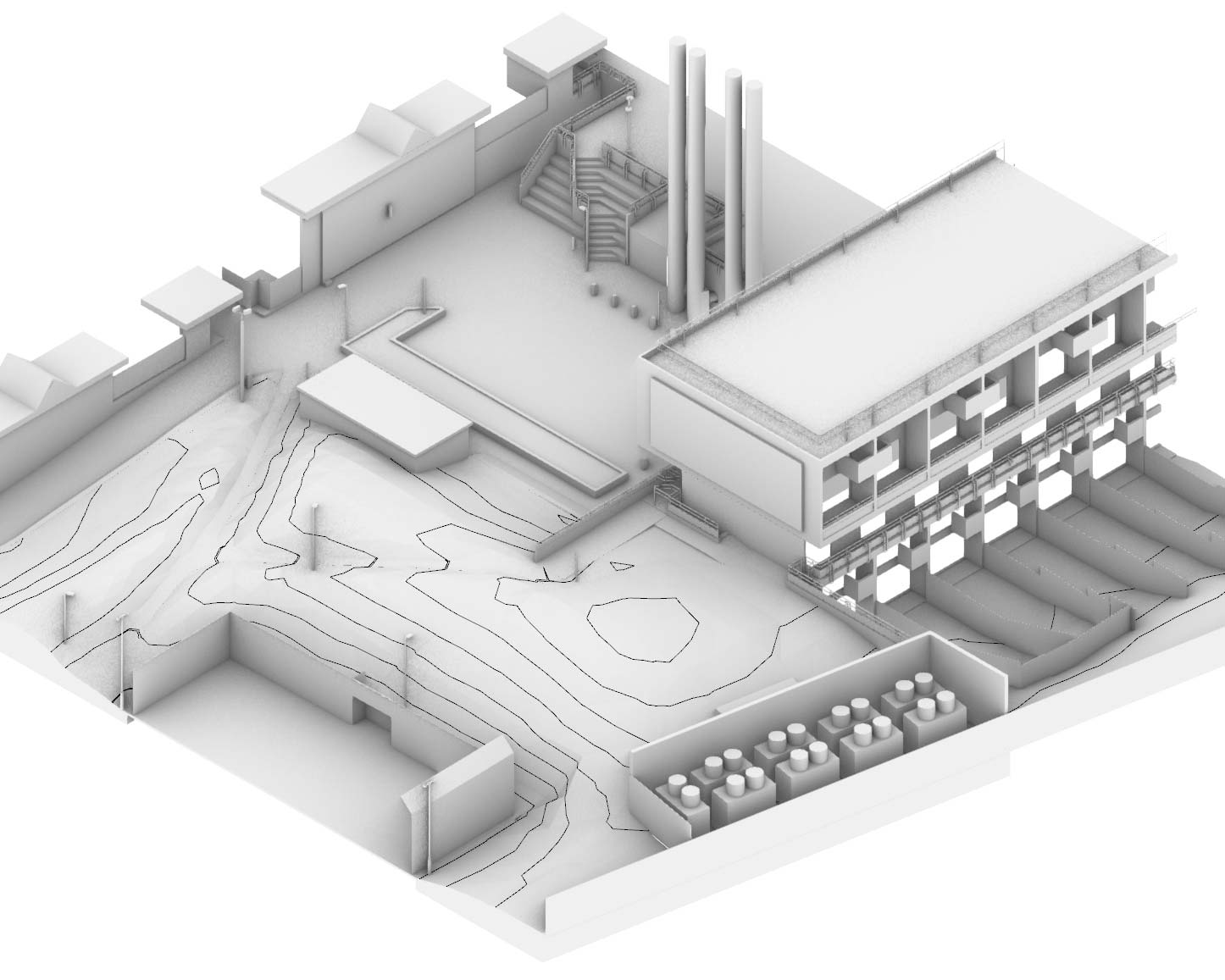

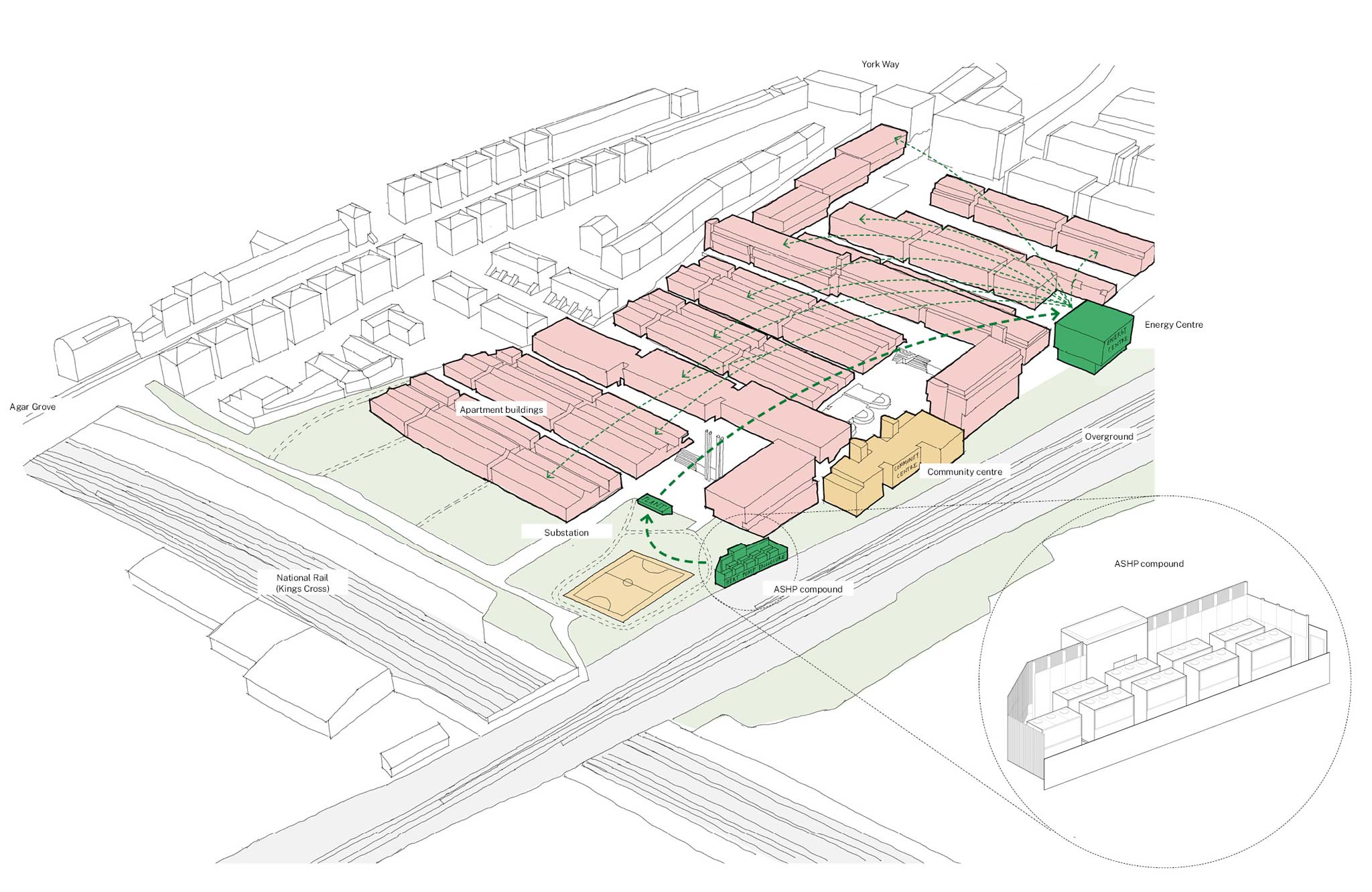

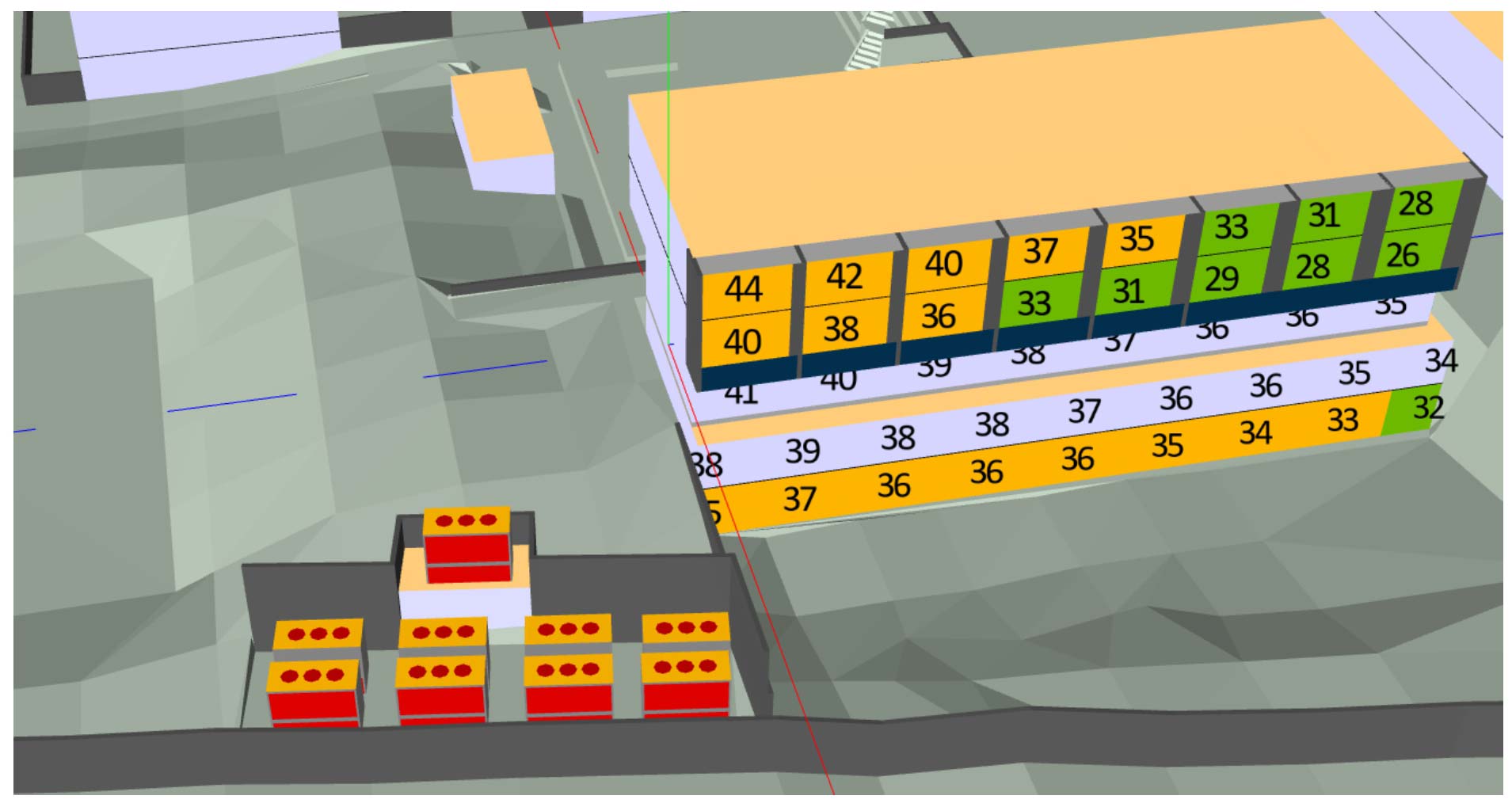

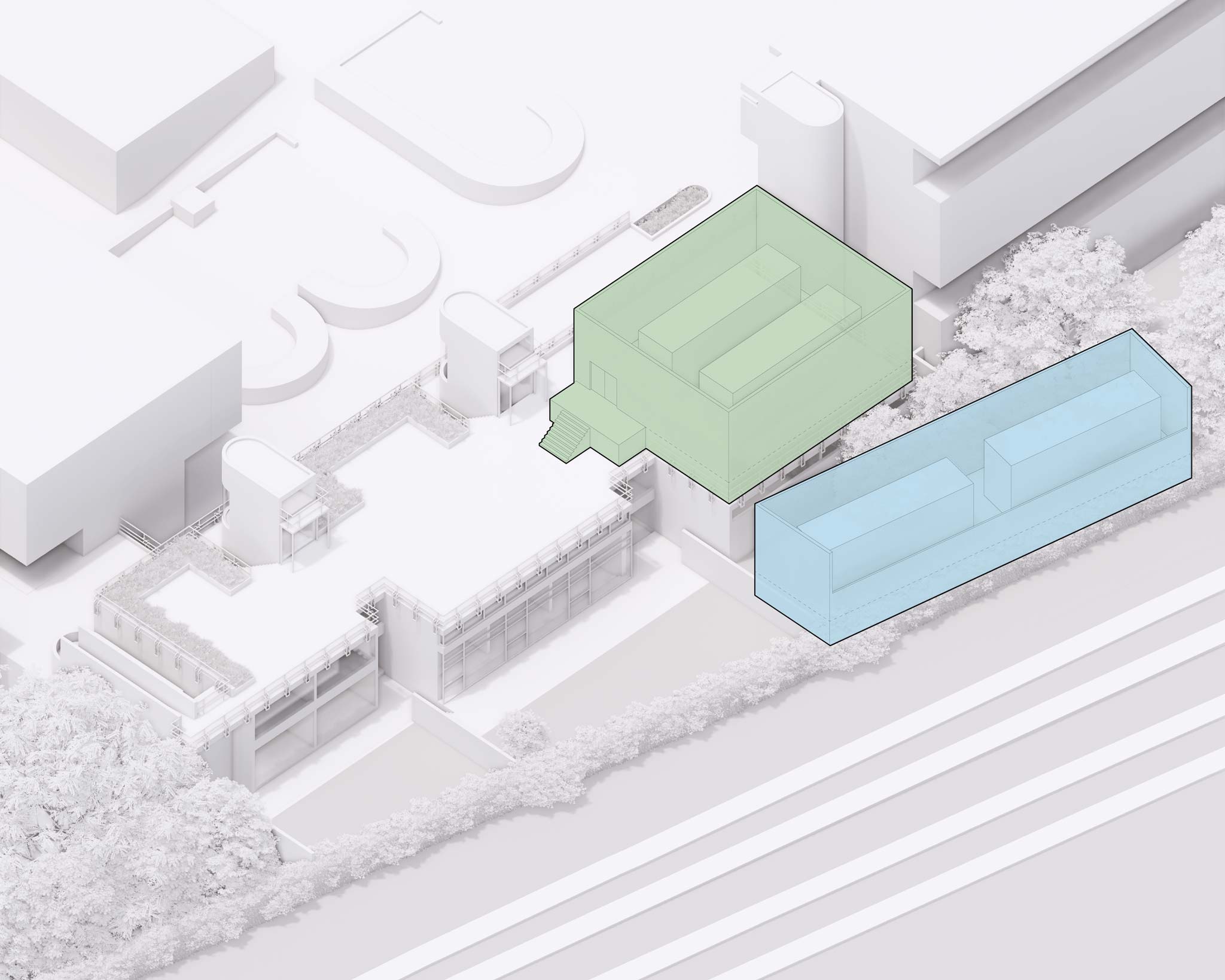

Analysis of site locations and arrangements of heat pumps in order to minimise noise impact on neighbours

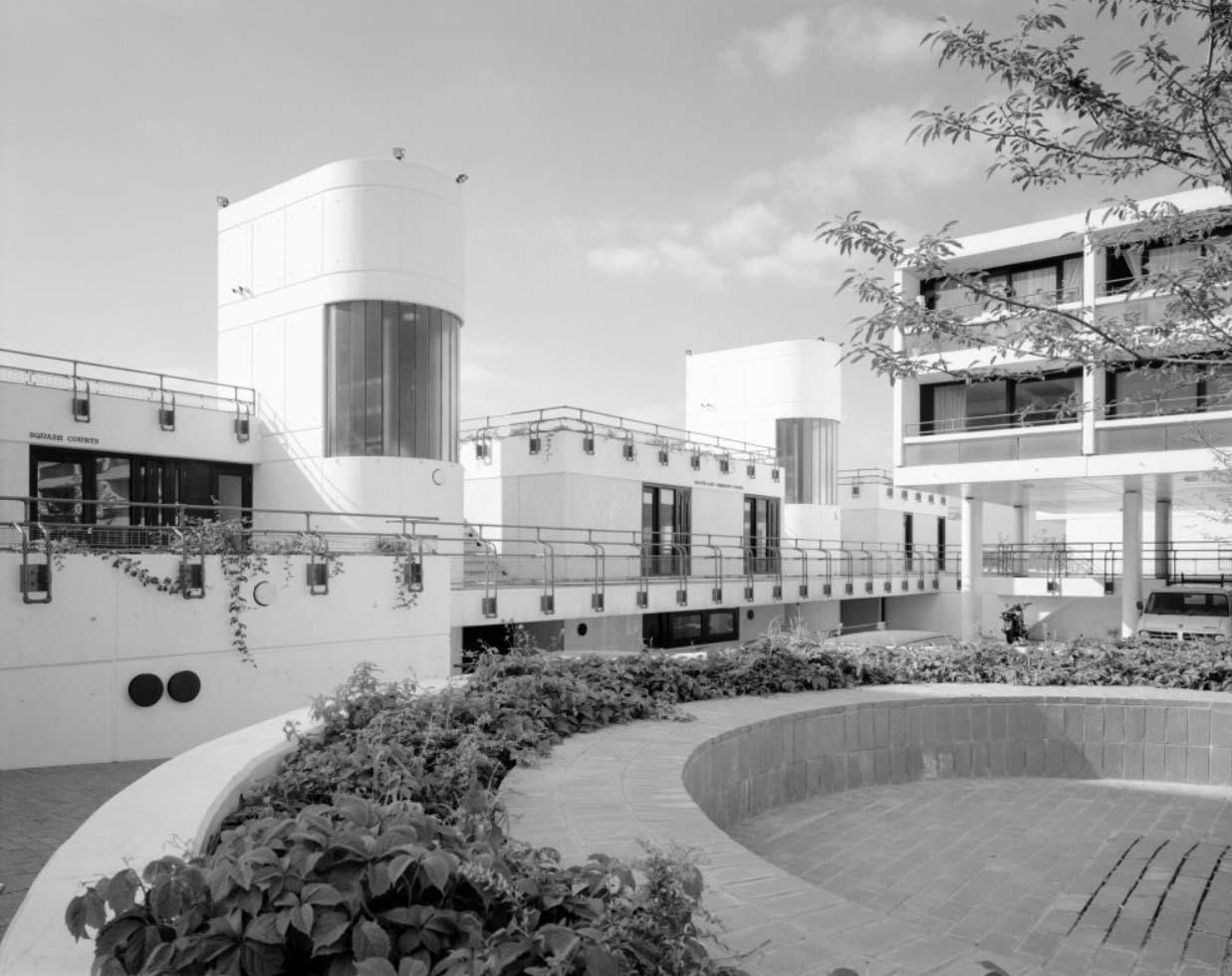

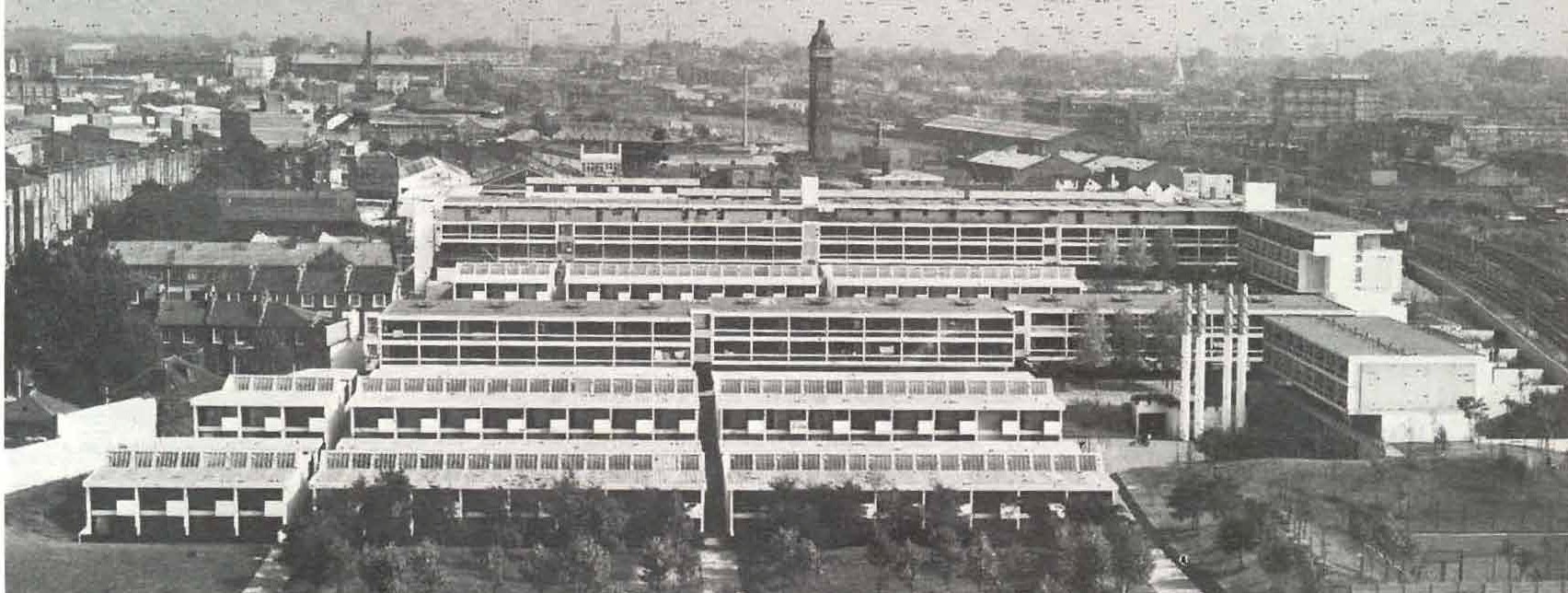

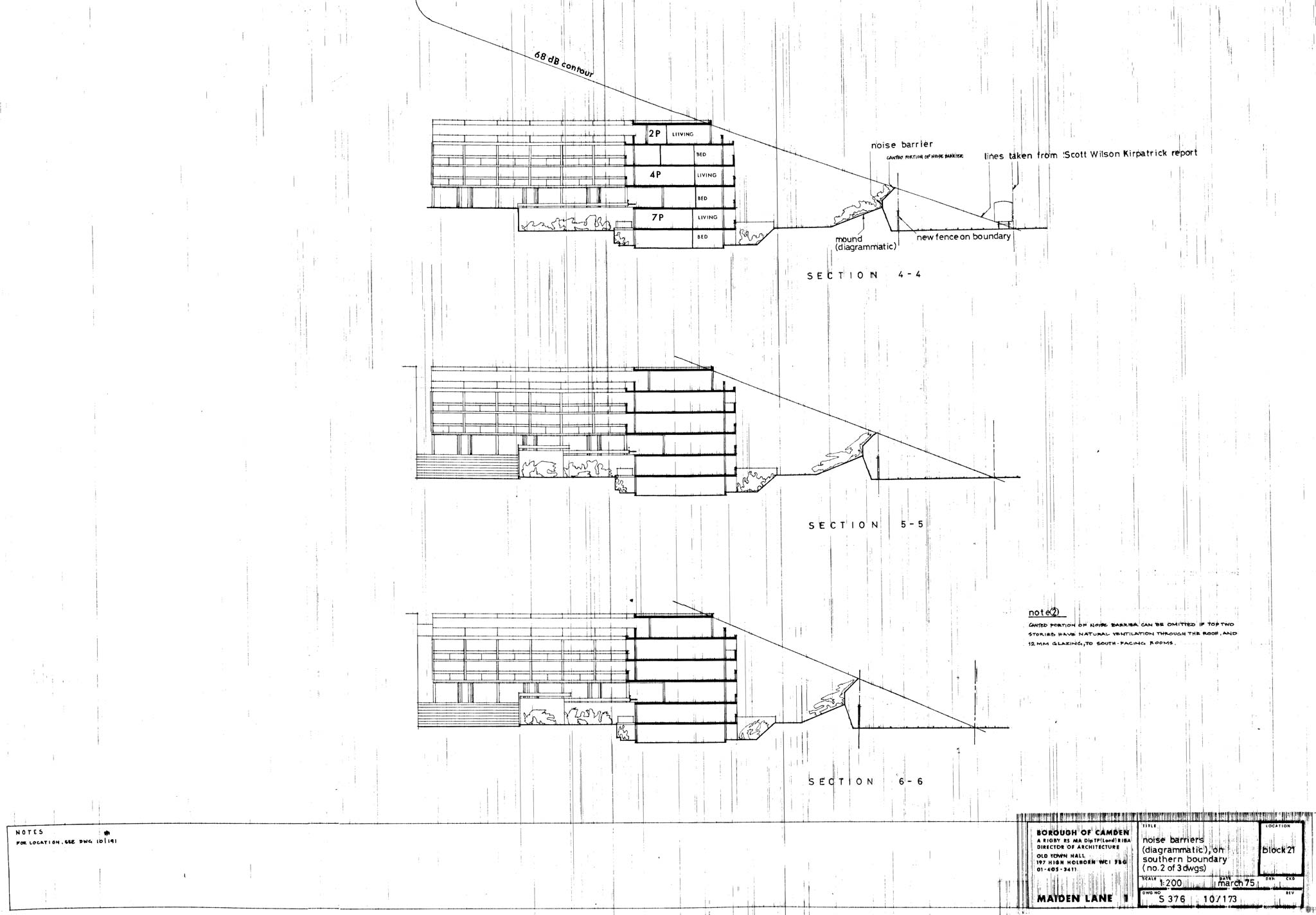

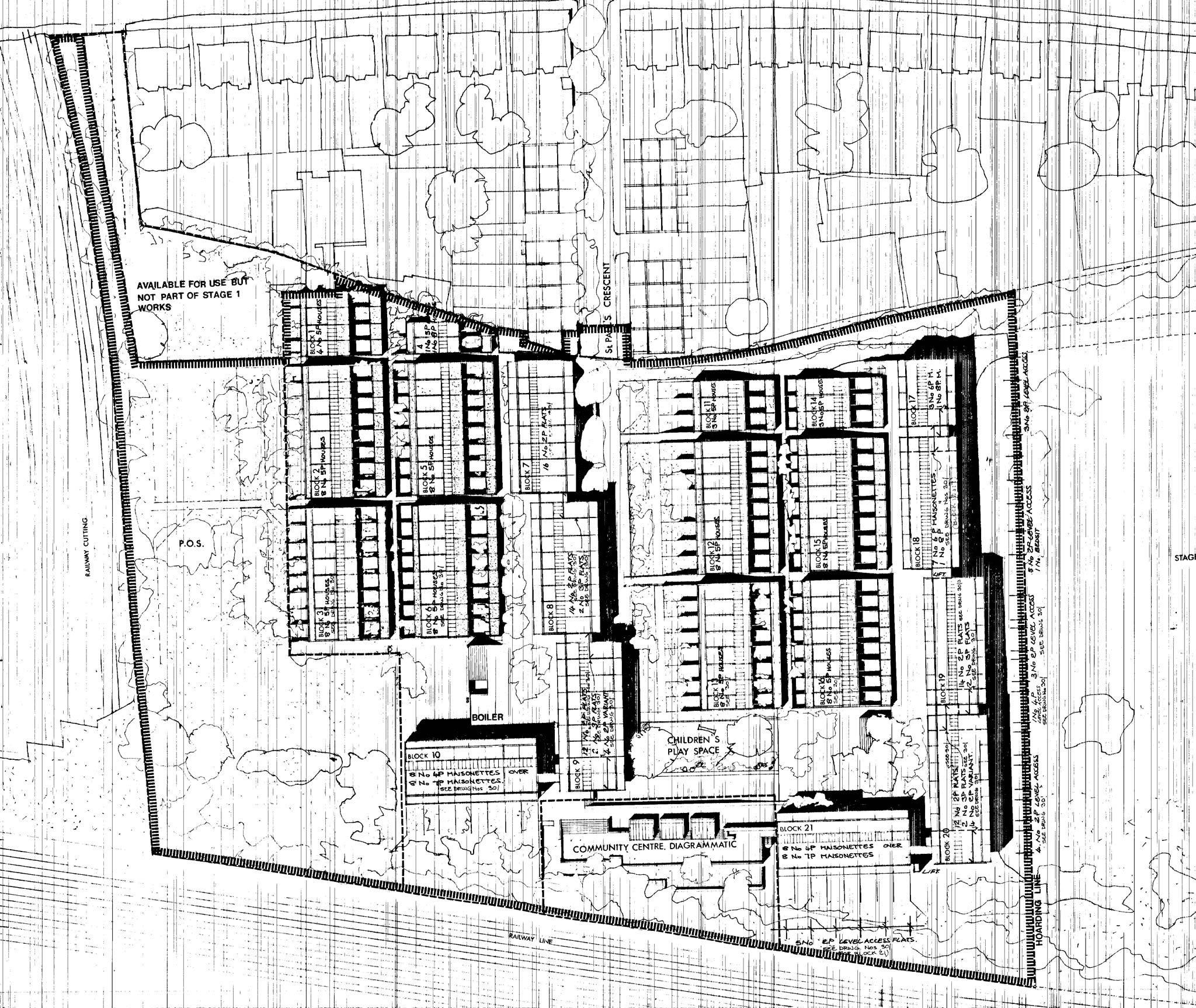

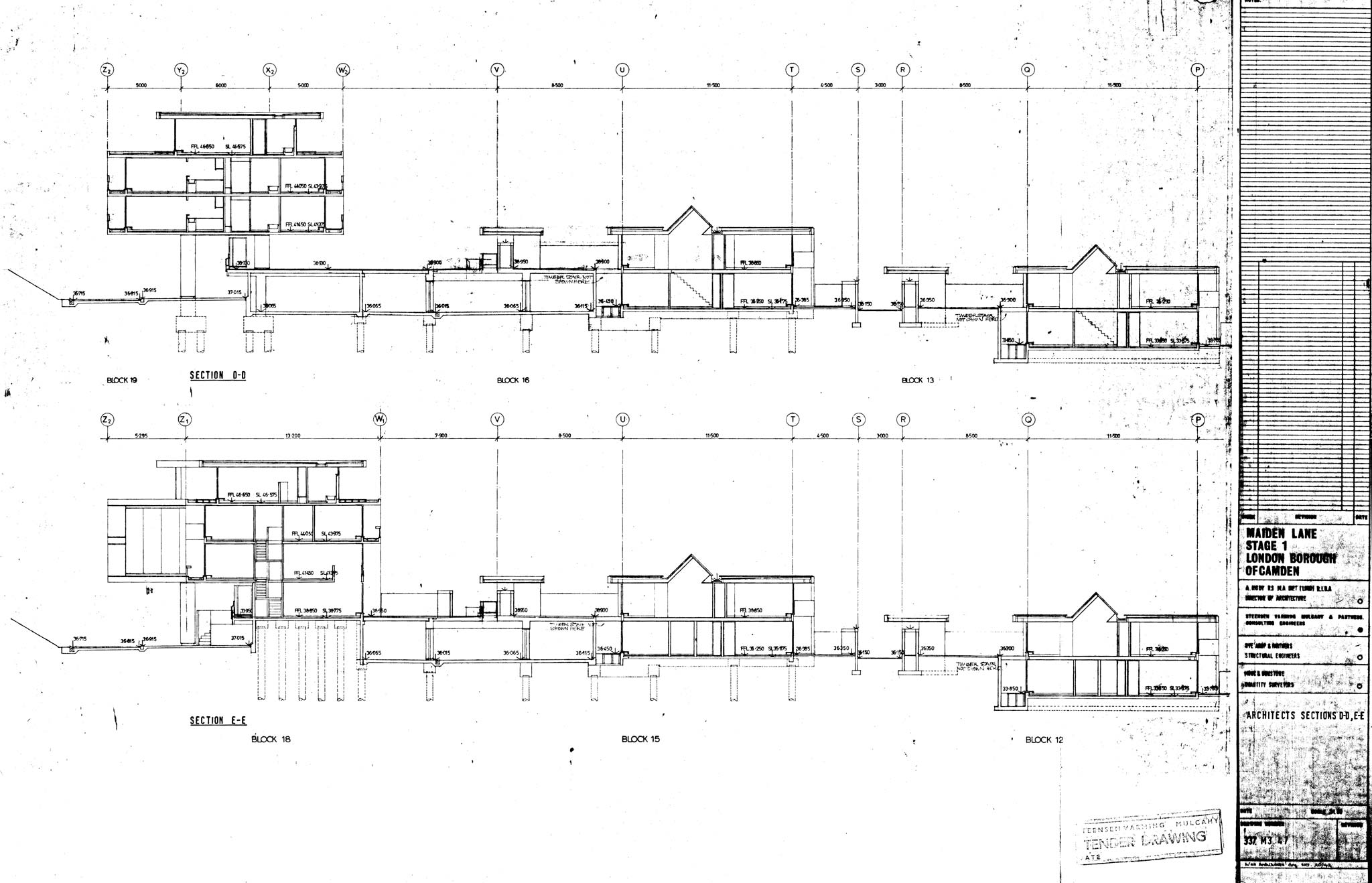

Historic information

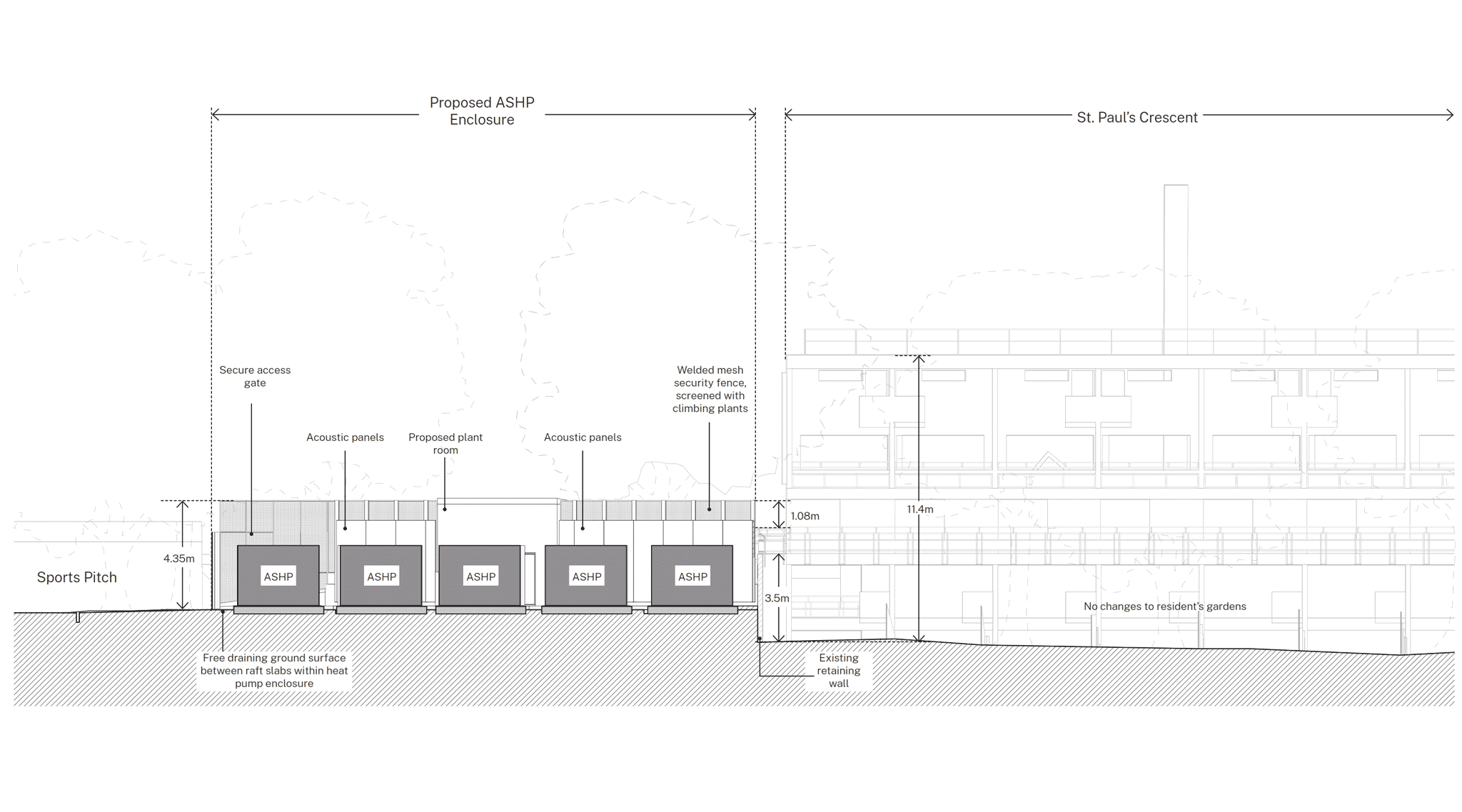

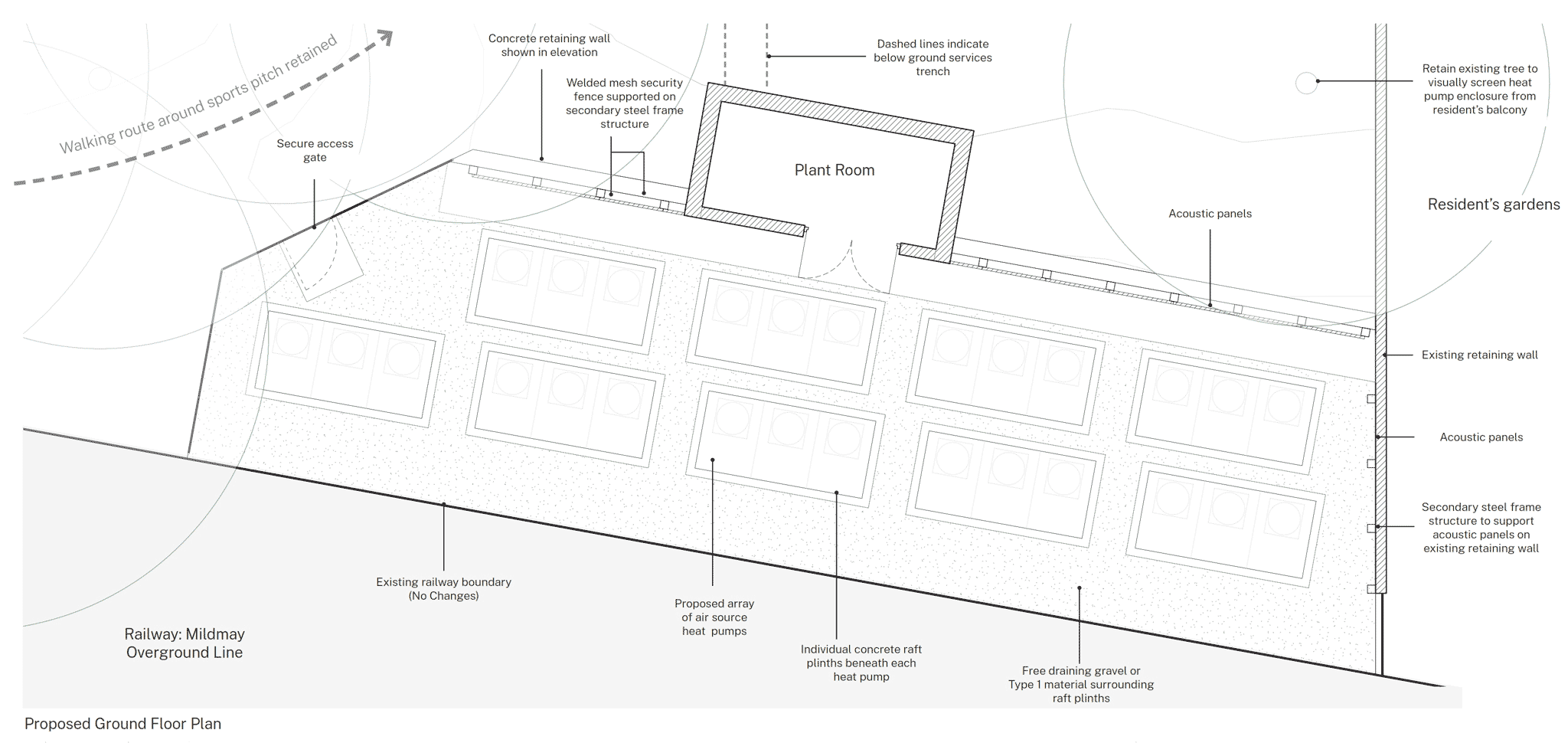

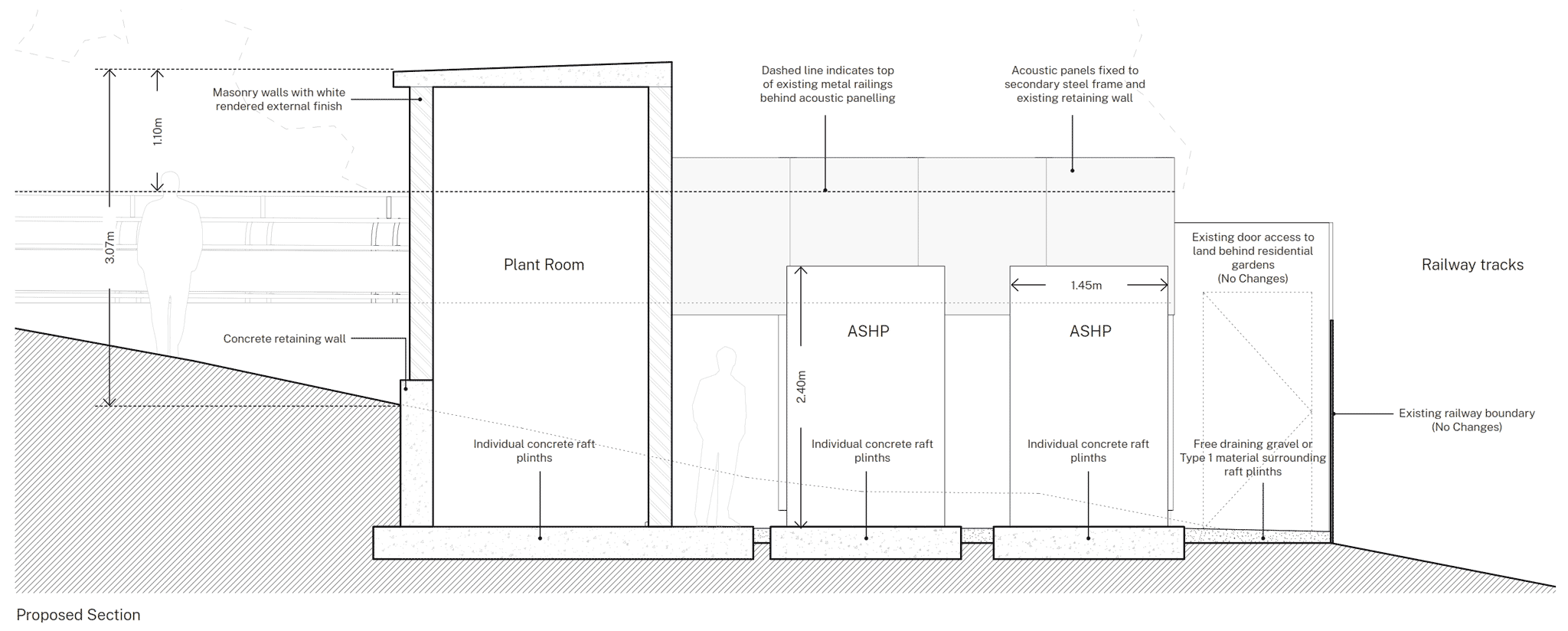

Drawings

217.

Maiden Lane Decarbonisation

Year:

2023-26


Preapplication 2024; Full application 2025-26

CF Project team: Francis Fawcett, Laura Davis-Lamarre, Zachary Henderson, Alec Crisp

Max Fordham LLP — M&E engineers (energy and sustainability, noise assessment, community consultation)
Aurochs Ecology — preliminary ecological appraisal, BNG assessment
Sykes Land Management — arboricultural impact assessment
Fiona Sibley MRTPI — planning statement
CLS — transport assessment, construction management plan, logistics
